Implementing REST API for Long Running Jobs

August 24, 2022 10 minutes read

SOFTWARE ARCHITECTURERESTJAVA

In previous post Rest API For Long Running Job we discussed the design of an API exposed to handle long runnining jobs. Such an API decouples the long running process with the actual API, and instead of indefinitely waiting for a response we expose a /status endpoint to monitor the progress of the running task.

In this post we will implement such an API.

Simple API Structure

Let’s first start with implementing a simple API, when the long running job is not in the picture. I will be using Java with Spring for this purpose. If you wish to directly jump to the implementation of the long runnning API, you can click here.

Define Order Entity

Let’s start by defining an entity Order. We name the table name as customer_order as Order is not a valid name for a table (We are using the H2 database here for simplicity). The customer_order table has 5 columns, id being the primary key, description, price, quantity and amount.

@Entity
@Table(name = "customer_order") // 'order' is not a valid table name
@Getter @Setter @NoArgsConstructor
public class Order {
    private @Id Long id;
    private String description;

    private Integer price;
    private Integer quantity;
    private Integer amount;

    public Order(Long id, String description, Integer price, Integer quantity, Integer amount) {
        this.id = id;
        this.description = description;
        this.price = price;
        this.quantity = quantity;
        this.amount = amount;
    }

    @Override
    public boolean equals(Object o) {
        if (this == o) return true;
        if (!(o instanceof Order)) return false;
        Order order = (Order) o;
        return Objects.equals(id, order.id) && Objects.equals(description, order.description) && Objects.equals(price, order.price) && Objects.equals(quantity, order.quantity) && Objects.equals(amount, order.amount);
    }

    @Override
    public int hashCode() {
        return Objects.hash(id, description, price, quantity, amount);
    }

    @Override
    public String toString() {
        return "Order{" +
                "id=" + id +
                ", description='" + description + '\'' +
                ", price=" + price +
                ", quantity=" + quantity +
                ", amount=" + amount +
                '}';
    }
}

Define Order Repository

Let’s define an OrderRepository for introducing database operations on this entity:

public interface OrderRepository extends JpaRepository<Order, Long> {
}

Define REST Endpoints

We take the order description, price and quantity as input, and generate the value of the id column each time a new order is created. Assume that the calculation of the amount is a time taking operation. As long as the amount has not been populated, the order creation is not considered complete.

Let’s define the endpoints GET /orders, POST /orders and GET /orders/{id} on OrderController.java:

@RestController
@Slf4j
public class OrderController {
    @Autowired
    OrderRepository repository;

    @Autowired
    OrderCreationService orderCreationService;

    @GetMapping("/orders")
    public ResponseEntity<Order> all(){
        return ResponseEntity.ok(repository.findAll());
    }

    @PostMapping("/orders")
    public ResponseEntity<Order> newOrder(@RequestBody Order order){
        order.setId(orderCreationService.generateOrderId());
        repository.save(order);
        // LONG RUNNING TASK!!!
        orderCreationService.createOrder(order);
        return ResponseEntity.status(HttpStatus.CREATED).body(order);
    }

    @GetMapping("/orders/{id}")
    public ResponseEntity<Order> getOrder(@PathVariable Long id) {
        Order order = repository.findById(id)
                .orElseThrow(() ->
                        new ResponseStatusException(HttpStatus.NOT_FOUND, new OrderNotFoundException(id).getMessage()));

        return ResponseEntity.ok(order);
    }
}

Define Long Running Operation

We have a service OrderCreationService.java that deals with the long running operation of order creation. Here, we calculate the amount and to deliberately make this slow, we make the method sleep for 10 seconds in between:

@Component
@Slf4j
public class OrderCreationService {
    @Autowired
    OrderRepository orderRepository;

    public void createOrder(Order order) {
        Long id = order.getId();
        try {
            // sleep this thread for 10 seconds now
            Thread.sleep(10000);
            if (order.getPrice() < 0) throw new ValidationException("Price must not be negative");
            if (order.getQuantity() < 0) throw new ValidationException("Quantity can not be negative");
            order.setAmount(order.getPrice() * order.getQuantity());
        } catch (Exception e) {
            log.error("Job failed");
            throw new RuntimeException(e);
        } finally {
            orderRepository.save(order);
        }
    }

    public Long generateOrderId(){
        return orderRepository.count()+ 1L;
    }
}

Before you point this out, let me say I understand that we can make the id column autogenerated, but I have kept a seperate method for this as I wish to generate the id before saving it to the repository, to keep in line with the implementaion I will be doing later. Also, yes, I am not proud of the orderRepository.count()+1L there either.

The Problem

As expected, the POST /orders endpoint is going to take a long time before it returns. All this time, the caller needs to wait for the result, unable to take any other action:

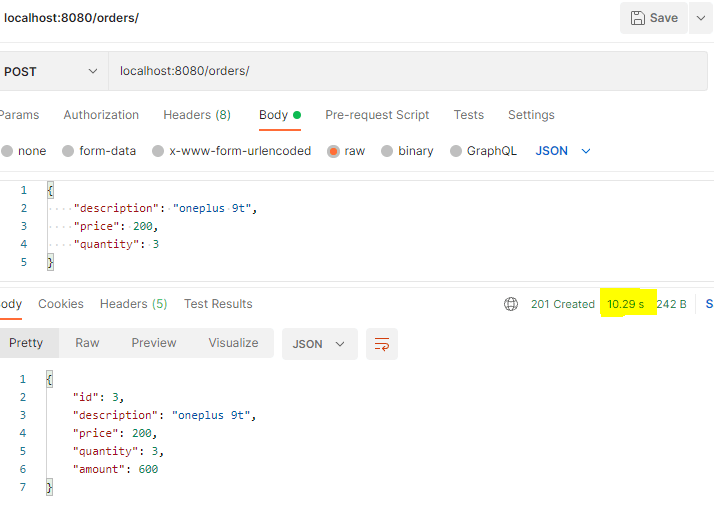

Consider the highlighted 10s it takes for this query to complete.

As discussed in detail in my previous post, when using this application on production, usually a system wide or project timeout is placed. This will cause our Order creation process to fail, as it’s going to take atleast 10 seconds. Even if the timeouts are not in place, it’s a bad user experience.

Implementing API for such Long Running Tasks

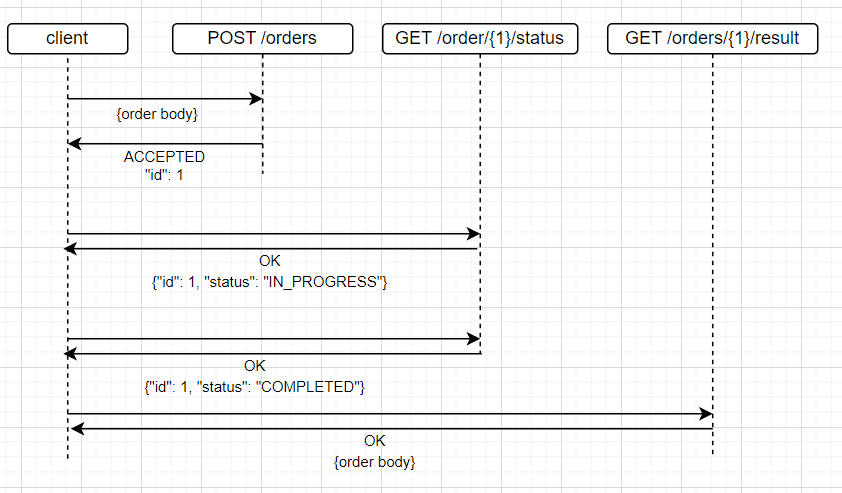

With initial setup out of the way, let’s move on to modify this API to support such long running operations. Following is the flow we’re trying to implement, observe how the POST request immediately returns.

We introduce another column Status, using which we will track the status of the order creation:

public enum Status {
    IN_PROGRESS,
    COMPLETED,
    CANCELLED,
    FAILED
}

Let’s add this status to our table:

@Entity
@Table(name = "customer_order")
@Getter @Setter @NoArgsConstructor
public class Order {
    private @Id Long id;
    private String description;

    private Integer price;
    private Integer quantity;
    private Integer amount;
    private Status status;

    public Order(Long id, String description, Integer price, Integer quantity, Integer amount, Status status) {
        this.id = id;
        this.description = description;
        this.price = price;
        this.quantity = quantity;
        this.amount = amount;
        this.status = status;
    }

    // EQUALS, HASHCODE AND TOSTRING modified to include status column
    // ...
}

Modify POST endpoint

We now change the POST endpoint to return the response immediately, trigger the async job, and set the status depending upon the stage in which the long running process in:

@PostMapping("/orders")
public ResponseEntity<OrderCreationResponse> newOrder(@RequestBody Order order){
    order.setStatus(Status.IN_PROGRESS);
    order.setId(orderCreationService.generateOrderId());
    repository.save(order);

    log.info("Triggering creation async job...");
    orderCreationService.createOrder(order);
    return ResponseEntity.accepted().body(new OrderCreationResponse(order.getId()));
}

Let’s go over the changes made here:

Response Code

Now when the POST /orders is called, instead of sending the 201 CREATED response, I will now send back 202 ACCEPTED. This indicates that we have accepted the request to create an order, however we may or may not have actually created the resource.

Response Data

Alongwith the above response code, we generate and send back the id. This id is used as the token to keep track of this particular request. For this, I now will return another object ObjectCreationResponse:

@Getter @Setter @AllArgsConstructor
public class OrderCreationResponse {
    private Long id;
}

Set Status of the Creation Process

We then change the status to IN_PROGRESS. We save this not-yet-fully-created order object to the repostory, so the object against the generated id can be tracked and updated further as the creation proceeds.

order.setStatus(Status.IN_PROGRESS);
order.setId(orderCreationService.generateOrderId());
repository.save(order);

Making the Long Running Job Asynchronous

Now once we set the job in progress, we move it to run in the background in the OrderCreationService:

@Async
public void createOrder(Order order) {
    Long id = order.getId();
    try {
        Thread.sleep(10000);
        if (order.getPrice() < 0) throw new ValidationException("Price must not be negative");
        if (order.getQuantity() < 0) throw new ValidationException("Quantity can not be negative");
        order.setAmount(order.getPrice() * order.getQuantity());
        order.setStatus(Status.COMPLETED);
        log.info("Async job completed");
    } catch (Exception e) {
        order.setStatus(Status.FAILED);
        log.error("Job failed");
        throw new RuntimeException(e);
    } finally {
        orderRepository.save(order);
    }
}

We mark the status as Status.COMPLETED at the end of the try block, or Status.FAILED if in the catch block. We make sure this status gets saved by using orderRepositor.save(order) in the finally block.

Trigger the Asynchornous Job and Return ID

Now in order for this endpoint to return immediately, we need to call createOrder asynchronously.

log.info("Triggering creation async job...");
orderCreationService.createOrder(order);

Add Endpoint to Get Job Status

Once we have received an id back from the POST /orders request, we now expose an endpoint that can be polled to return the status of the background job:

@GetMapping("/orders/{id}/status")
public ResponseEntity<OrderStatus> getOrderStatus(@PathVariable Long id){
    Order order = repository.findById(id).orElseThrow(() -> new OrderNotFoundException(id));
    Status status = order.getStatus();
    return ResponseEntity.ok(new OrderStatus(id, status));
}

Here the OrderStatus is the object returning the id and the corresponsing status:

@Getter @Setter @AllArgsConstructor
public class OrderStatus {
    private Long id;
    private Status status;
}

Add Endpoint to Get Job Result

After we receive status: COMPLETE from the /orders/{id}/status, when we can finally get the object details by exposing a new /orders/{id}/result endpoint:

@GetMapping("/orders/{id}/result")
public ResponseEntity<Order> getOrderResult(@PathVariable Long id){
    Order order = repository.findById(id).orElseThrow(() -> new OrderNotFoundException(id));
    if(!order.getStatus().equals(Status.COMPLETED)){
        return ResponseEntity.status(HttpStatus.METHOD_NOT_ALLOWED).build();
    }
    return ResponseEntity.ok(order);
}

Observe that the response body is of the type Order here. We no more need the GET /orders/{id} endpoint, as this one will only display the order details after the job has completed.

Demo Time

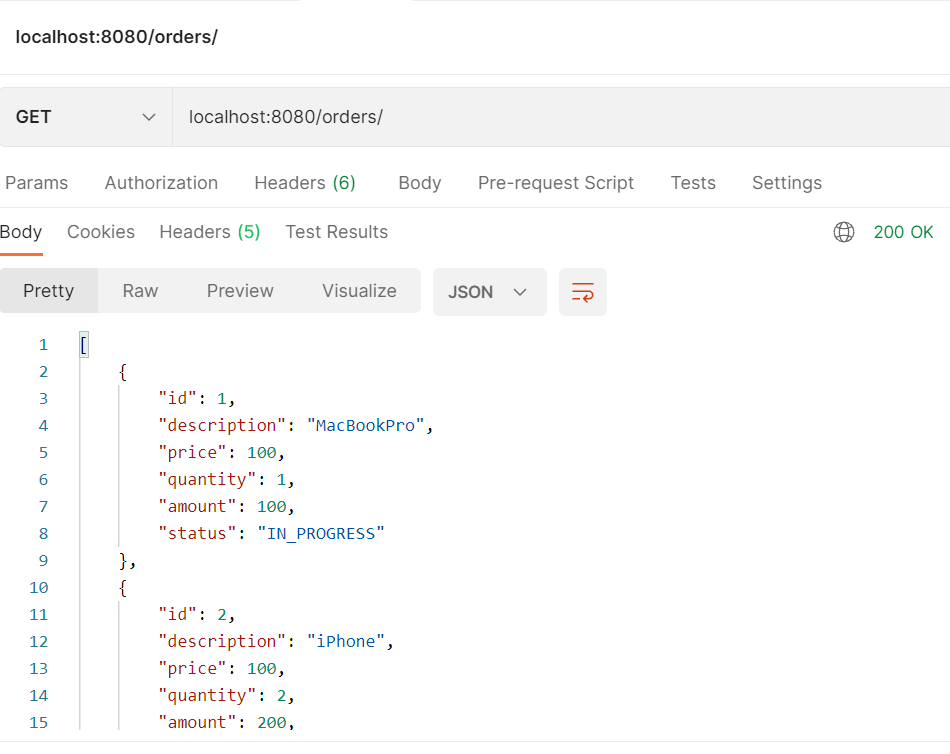

Get All Orders

The /orders endpoint works as expected, returns the list of all order details.

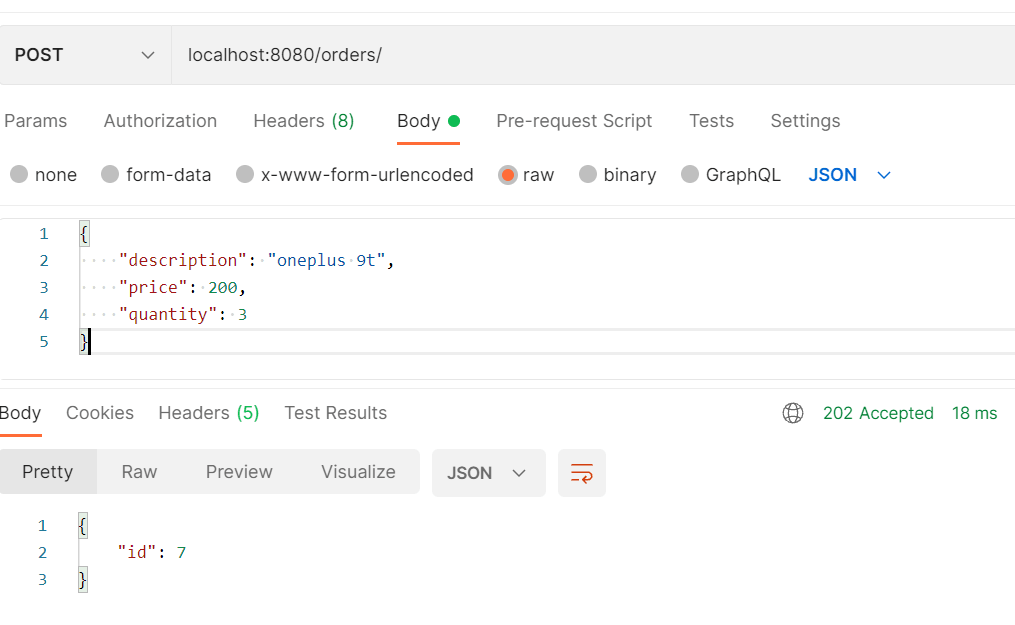

Create An Order

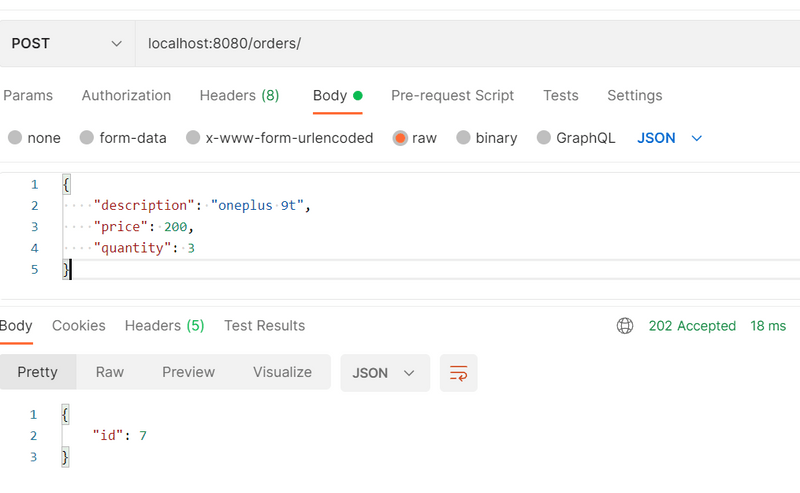

Now we hit a POST request to create a new Order. Observe that we receive the response code 202 Accepted. In response we receive the id of the new order being created.

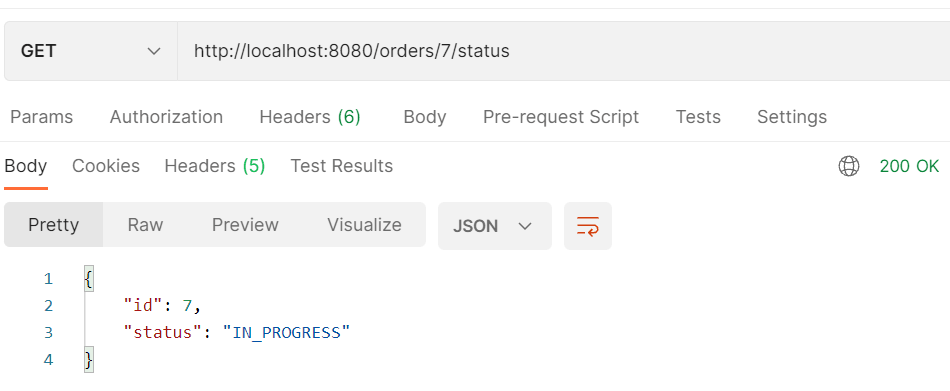

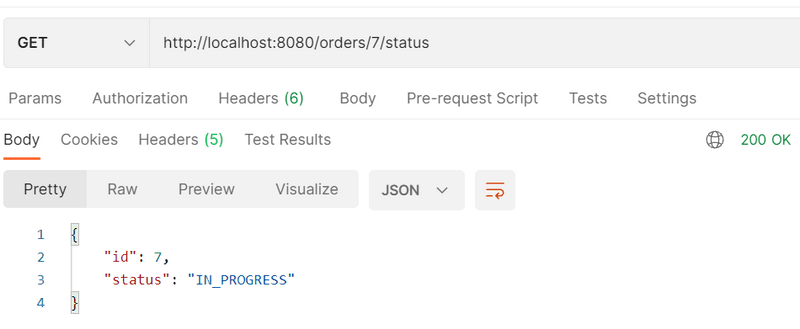

Get Order Status

Let’s now check the status of this order. We will keep seeing the IN_PROGRESS status as long as the background job completes:

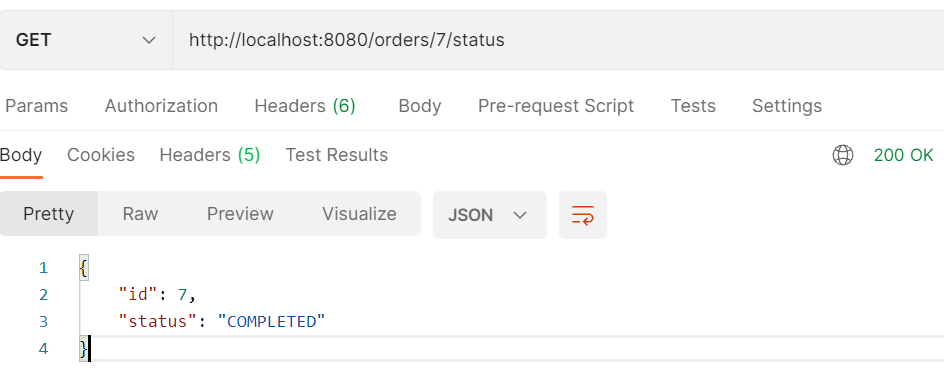

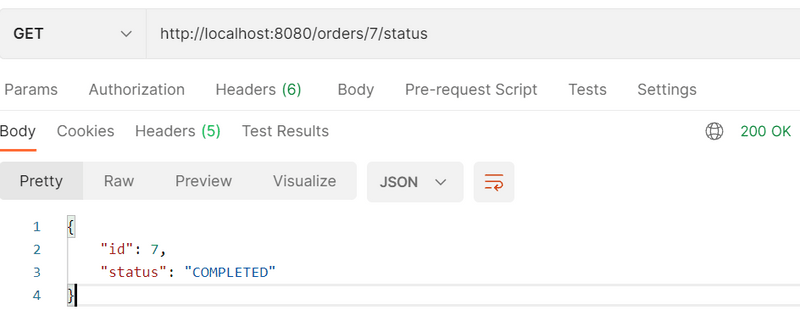

Poll Status Until Completed

We keep polling until we see the COMPLETED status:

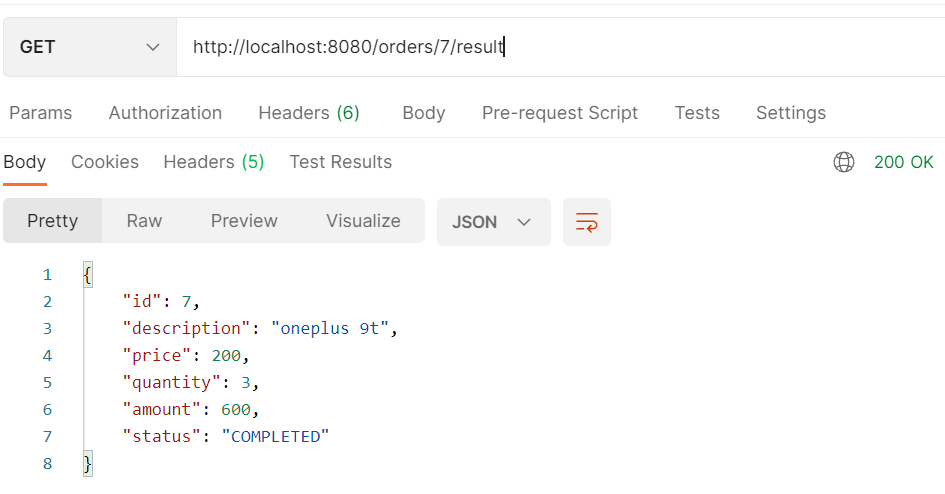

Get Results

Now let’s get the results to get the actual order details. Here the amount is generated for the given order.

Conclusion

So far, we have implemented the basic flow, with the necessary endpoints to make it work. However, a production level API is far more complicated than this. Generally, it is a good idea to separate the ids logically, i.e. have an id such as taskId or transactionId which is solely maintained for the purposes for tracking a long running job, and a resource id such as orderId here, used for idenitfying that particular resource. When we implement it like this, we can design this further to put an in-memory DB for even quicker tracking of long running processes instead of making rounds to our main product database.

Also, this implementation paves the way to further provide the ability to the user to cancel a job they triggered. We need to apply sufficient protective measures as well ir order to protect an API from crashing.

It is also easy to see that this API has become more complicated, but this can be reduced by documenting the API (obviously) as well as implementing the API in such a way that the users a directed to the next endpoint (Hint: HATEOAS). If time permits, I shall expand this in a further post.
